Trays for Positioning & Support

 Key Functions of Wheelchair Trays

  • Upper Extremity Support: Supports weak or paralyzed arms and hands, helping to maintain proper shoulder alignment and reduce strain.

  • Posture & Positioning: Aids in maintaining a stable, midline trunk position and supports the body, which is especially helpful for individuals with core weakness.

  • Safety: Prevents arms from dangling, reducing skin issues and potential injury, and can include features like cup holders and raised edges to prevent spills.

  • Activity Surface: Creates a firm, flat surface for eating, writing, reading, crafts, games, or using laptops and tablets.

  • Independence & Convenience: Allows users to perform tasks without needing assistance or reaching for external tables, fostering self-reliance.

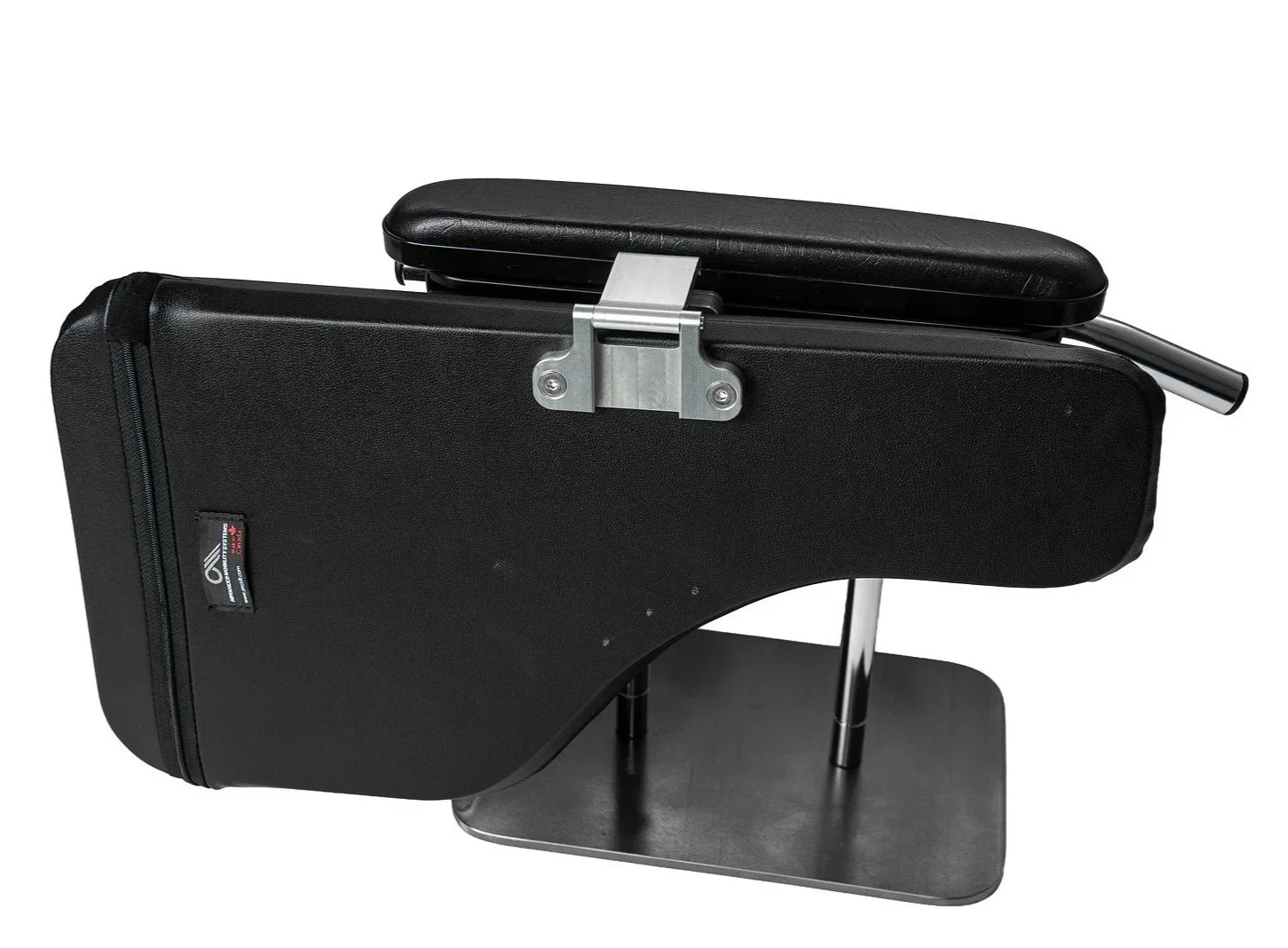

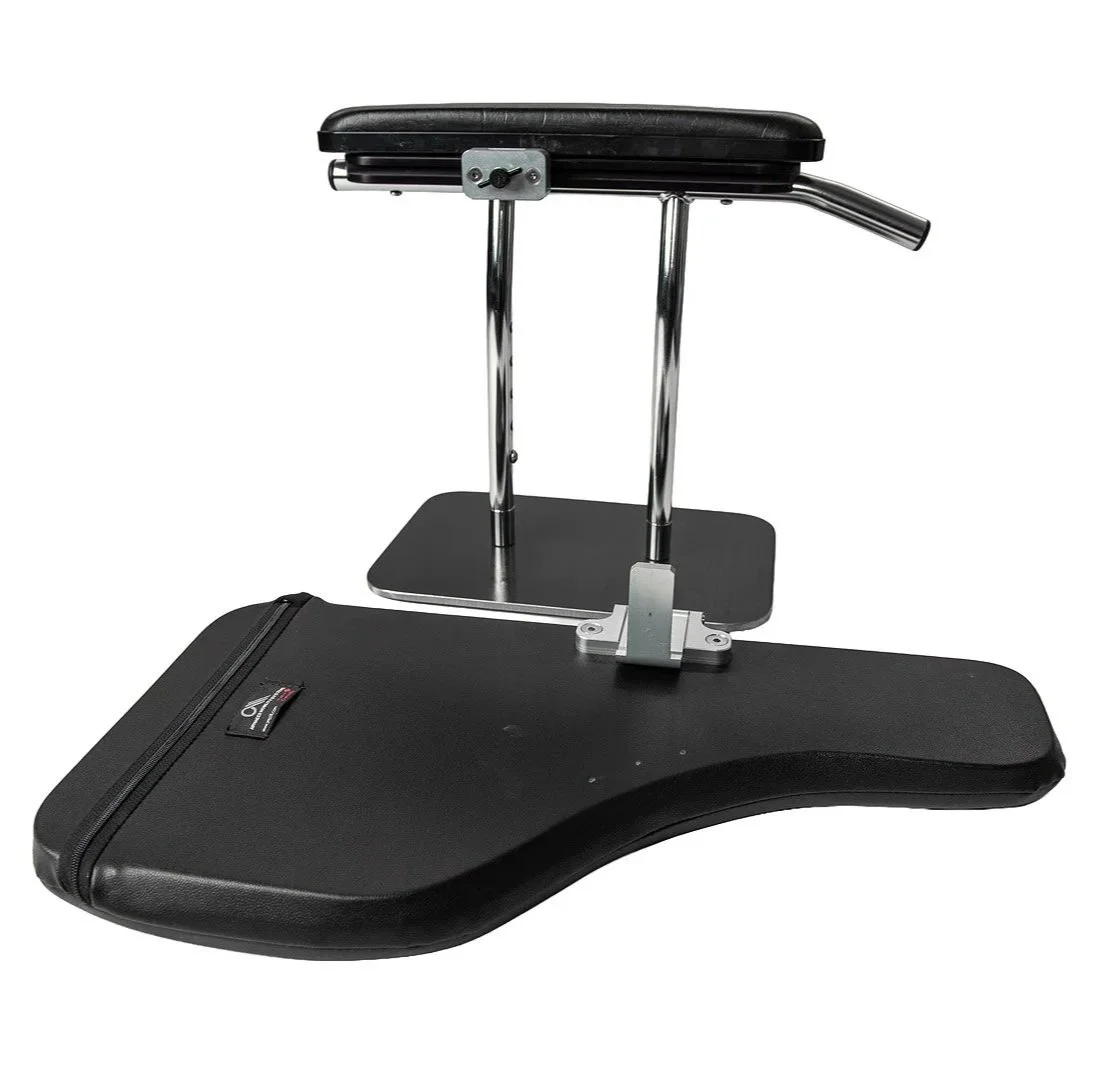

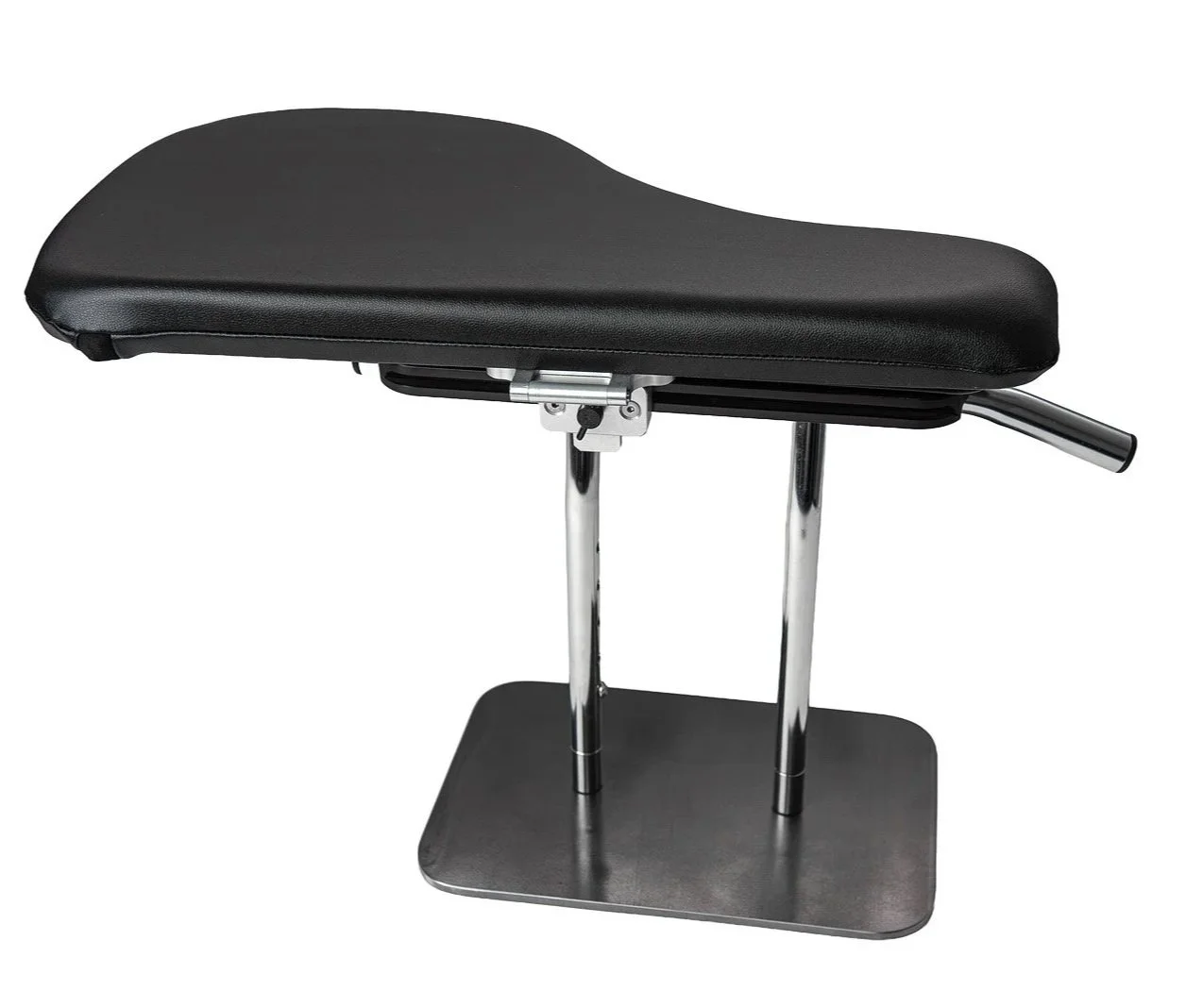

½ SUPPORT TRAY

Optimum adjustability and stability for positioning needs.

Offers stable support for people with a weakness on one side.

Less confining than a full tray.

Unique Universal Mounting Plate allows for:

  • easy installation to most manual or power wheelchairs.

  • forward/rearward adjustability to accommodate torso or change in positioning needs.

  • height adjustability to accommodate a variety of arm pads.

Removable or easily flipped 270° out of the way for the client to transfer in and out of the wheelchair

Accommodates lateral support and/or elbow stop for additional positioning needs.

Premium stretch vinyl covering and 1” foam padding provides comfort and support.

PART# VPL501L – Left

PART# VPL502R – Right

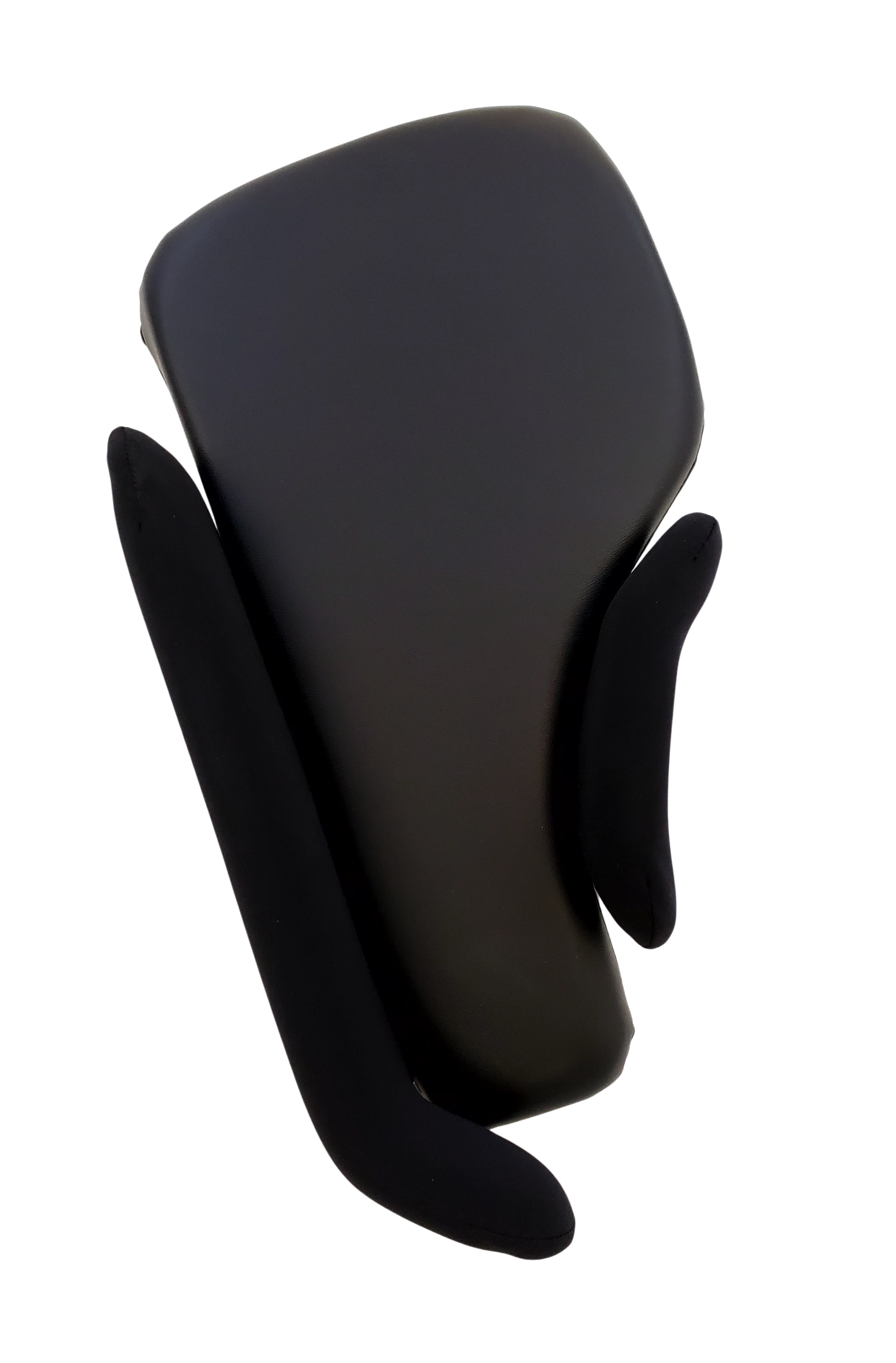

½ SUPPORT TRAY POSITIONING OPTIONS

Now in aluminum, more durable, less chance of cracking or breaking.

  • Increases better arm and body positioning

  • Padded with removable stretch cover.

ESC100L - ELBOW STOP CURVED LEFT – STANDARD   @ 5L x 3.5H

ESC200R - ELBOW STOP CURVED RIGHT – STANDARD @ 5L x 3.5H

ESEX501L - ELBOW STOP CURVED EXTENDED LEFT
@ 12L x 3.5H

ESEX502R - ELBOW STOP CURVED EXTENDED RIGHT
@ 12L x 3.5H

ELS100 - ATERAL INNER TRAY STOP/SUPPORT
@ 8W x 3.5H

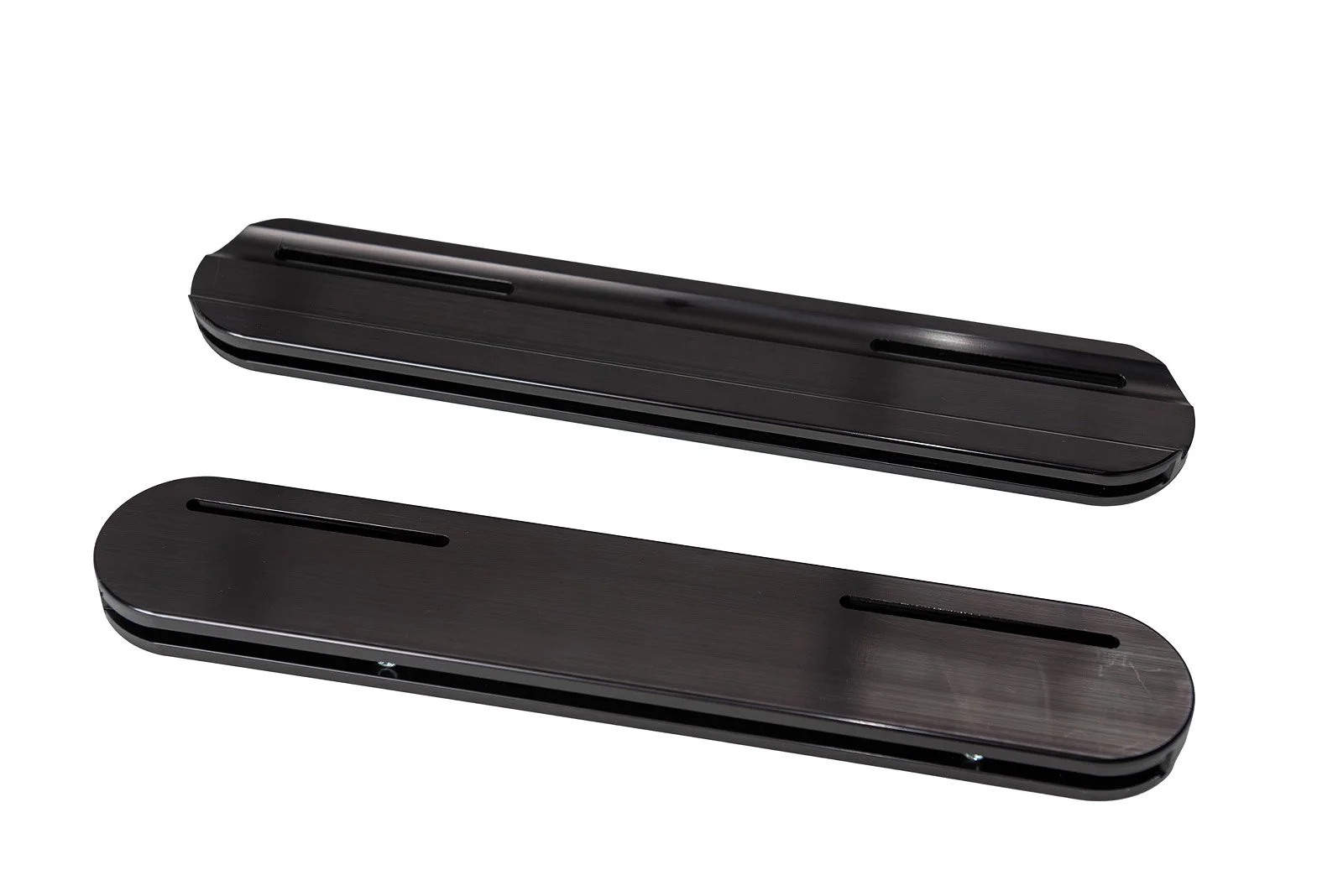

UNIVERSAL MOUNTING PLATE

  • Provides a unique mounting platform for lateral support, cup holders, phones, tablets and more.

  • Slotted plate mounts underneath arm pad, sliding t nuts included to mount and position a variety of accessories.

PART# UMP100

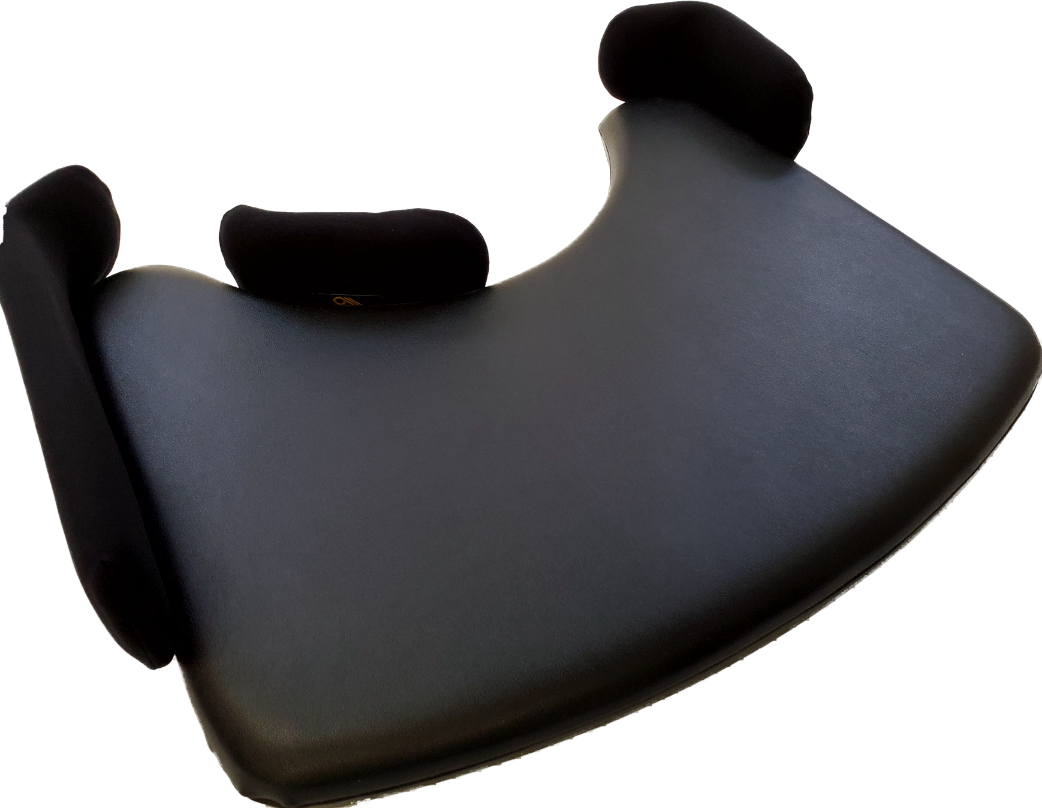

VINYL PADDED TRAY

Allows for user activity or positioning needs.

  • Premium stretch vinyl covering and 1” foam provide comfort and support.

  • Slide on, adjustable aluminum rails allow for easy mounting to most wheelchairs.

  • T-nuts in place for easy mounting of accessories.

  • Custom sizes, shapes, joy stick cut outs available

Available in 5 standard sizes:

PART# VPL114P fits chairs 14-16”w – Tray size 22w x 21”

PART# VPL100S fits chairs 16-18”w – Tray size 24w x 21”

PART# VPL200M fits chairs 18-20”w – Tray size 26w x 21”

PART# VPL300L fits chairs 20-22”w – Tray size 28w x 21”

PART# VPL400X fits chairs 22-24”w – Tray size 30w x 21”

PADDED TRAY POSITIONING OPTIONS

Now in aluminum, more durable, less chance of cracking or breaking.

  • Increases better arm and body positioning

  • Padded with removable stretch cover.

PART#

ESC100L - ELBOW STOP CURVED LEFT – STANDARD @ 5L x 3.5H

ESC200R - ELBOW STOP CURVED RIGHT – STANDARD @ 5L x 3.5H

ESEX100L - ELBOW STOP CURVED EXTENDED LEFT @ 12L x 3.5H

ESEX200R - ELBOW STOP CURVED EXTENDED RIGHT @ 12L x 3.5H

ELS100 - LATERAL INNER TRAY STOP/SUPPORT @ 8W x 3.5H

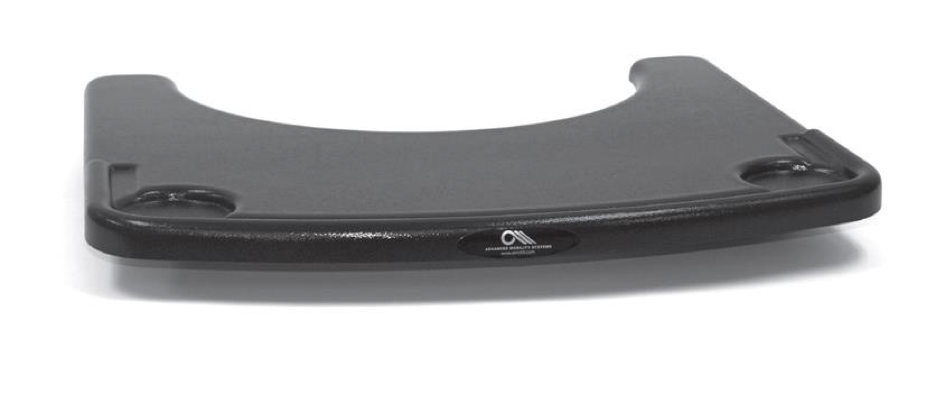

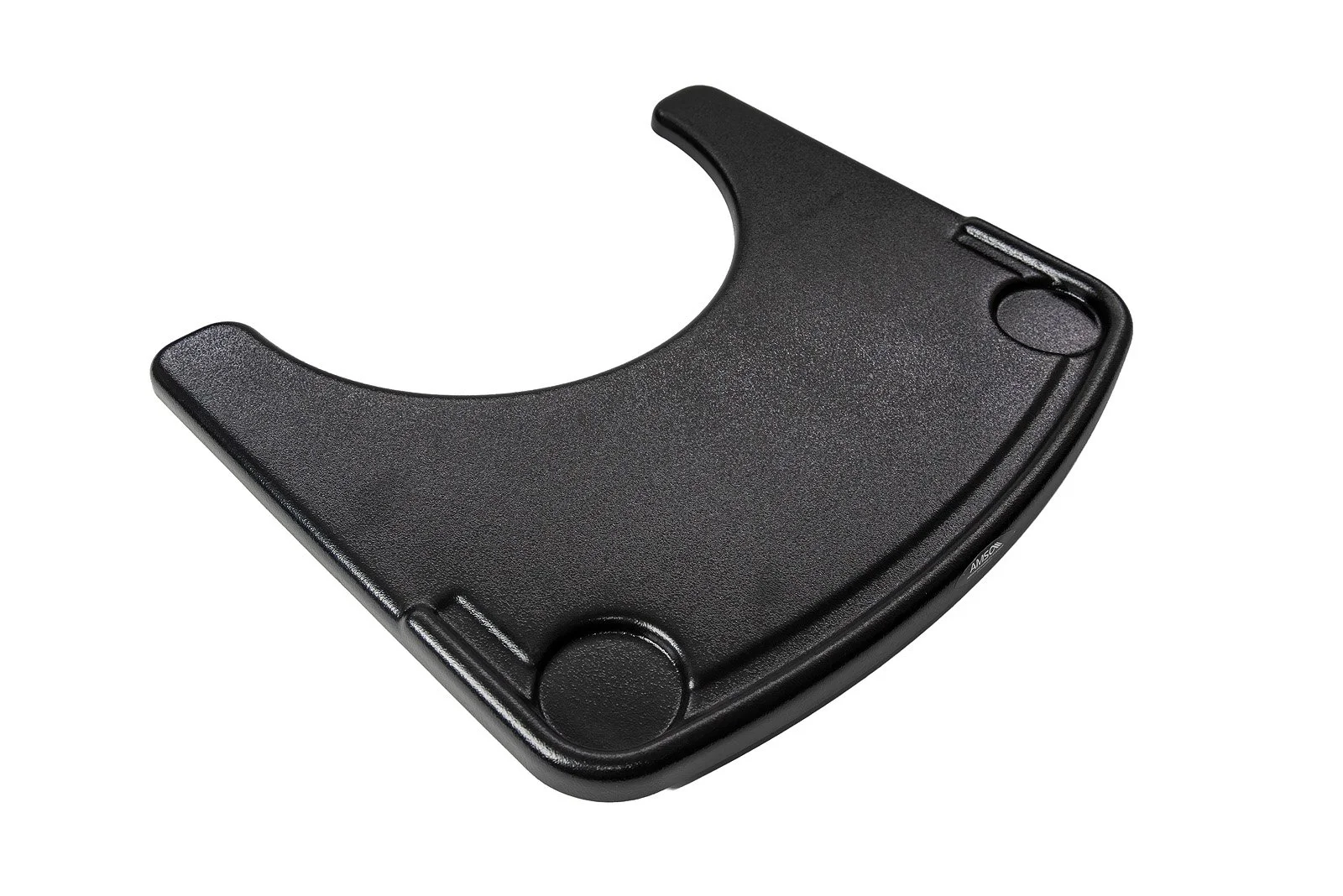

BLACK MOLDED TRAY

  • Smooth surfaces help prevent collection of food, dirt and germs while allowing for easy cleaning.

  • Extremely lightweight with left and right side cup holders and spill trough. Smooth edges and rounded corners for skin protection.

  • Slide on, adjustable, anodized aluminum rails allow for easy mounting to most wheelchairs.

PART# BMT100S  fits chairs @ 15-18″ – Tray size 24″w x 21″

PART# BMT200L  fits chairs @ 19-22″ – Tray size 27″w x 21″

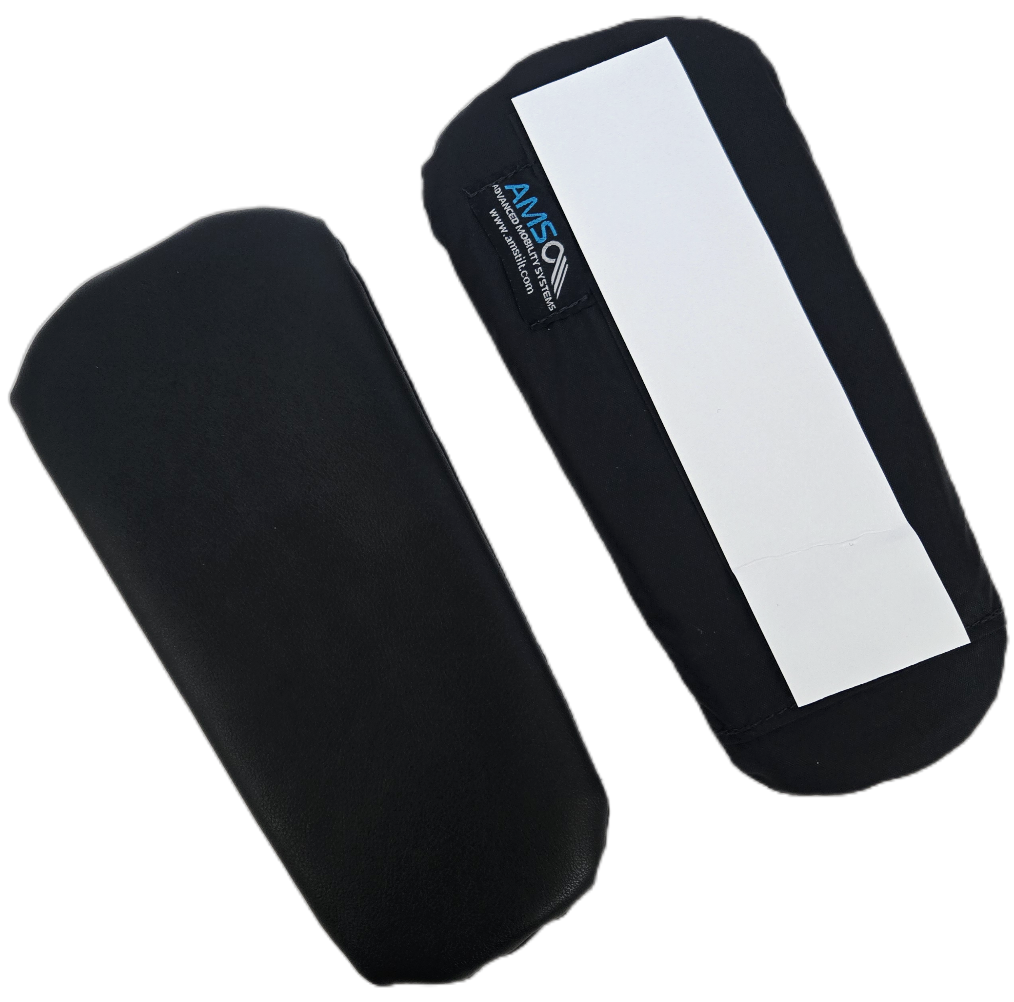

TRAY PADS

Provides protection and comfort.

  • Foam or gel with soft, wipe able vinyl cover.

  • Velcro allows pads to be removed to clean tray.

  • Designed to fit AMS Black Moulded trays; may be compatible with other trays.

  • Approximately 4″ W x 10″ L

PART# TPF100 – Foam Tray Pads

PART# TPG200 – Gel Tray Pads

Custom options available

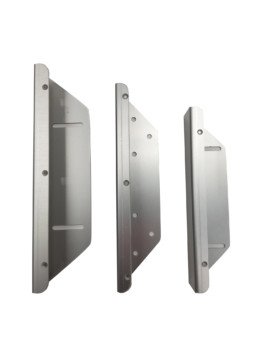

TRAY BRACKETS

Aluminum rails with slots for width adjustability

PART# VTBR100 – Vinyl Padded Tray Brackets 11.5″

PART# CLBR100 – Black Molded Tray Brackets 10.25″

PART# CPBR100 – Small Tray Brackets 9″

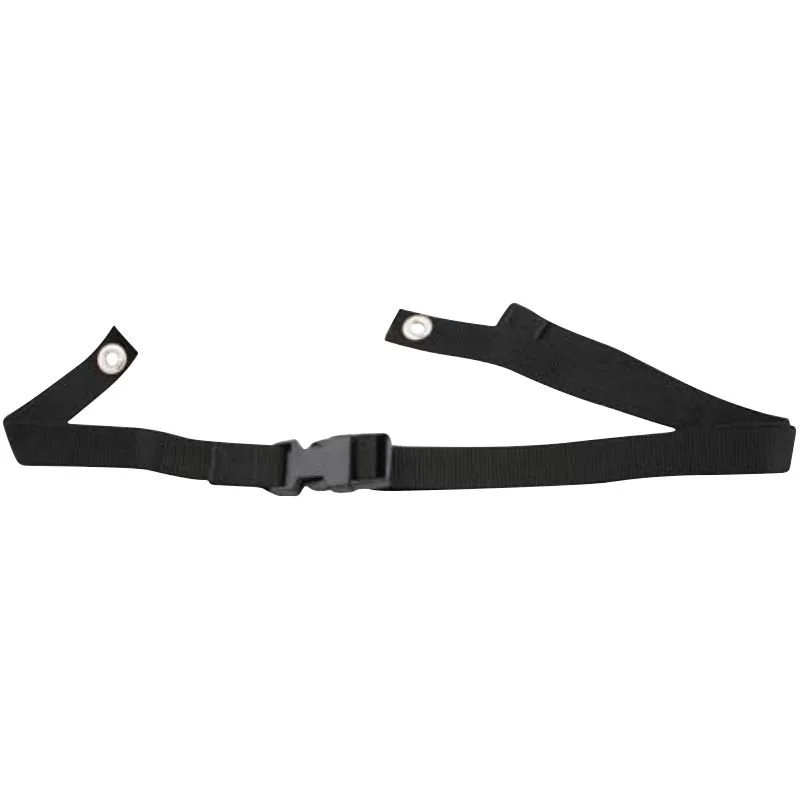

TRAY STRAP W BUCKLE AND MTG HARDWARE

PART# VTSB100

TRAY SPACERS W SCREWS

PART# TSP100
