Arms

Support & Accessories

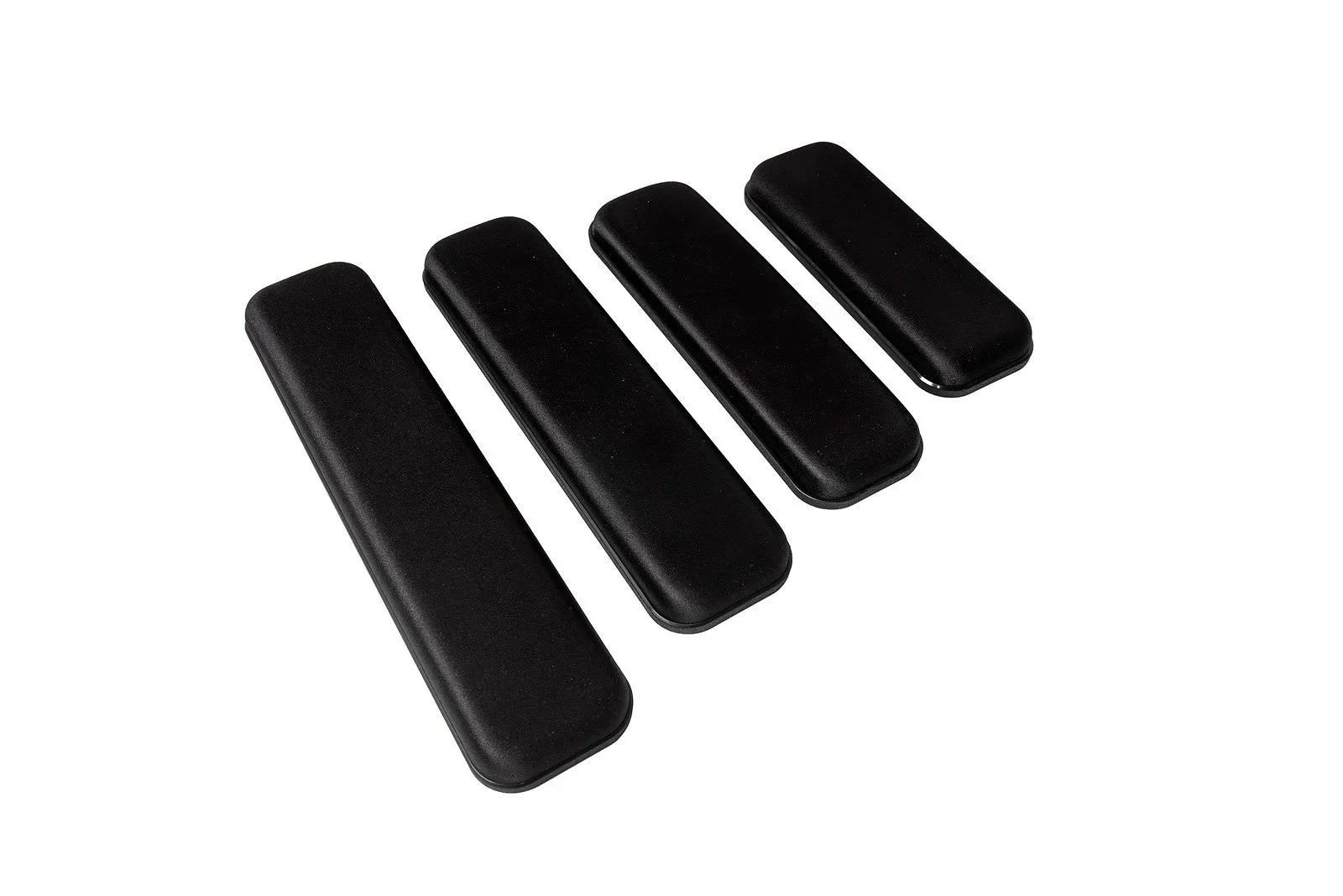

ARM PADS - G Series

  • Provide extra protection for highly sensitive skin.

  • Arm rest pads are GEL on a wood base with neoprene nylon cover and plastic base guard. They bolt on and hardware and flat surface to round tubing adaptors are provided.

  • Designed for the ultimate in COMFORT and PROTECTION and can AID in HEALING existing sores and/or abrasions.

PART# 210G – 2” x 10”

PART# 310G – 3.5” x 10”

PART# 212G – 2” x 12”

PART# 312G – 3.5” x 12”

PART# 214G – 2” x 14”

PART# 314G – 3.5” x 14”

PART# 316G – 3.5” x 16”

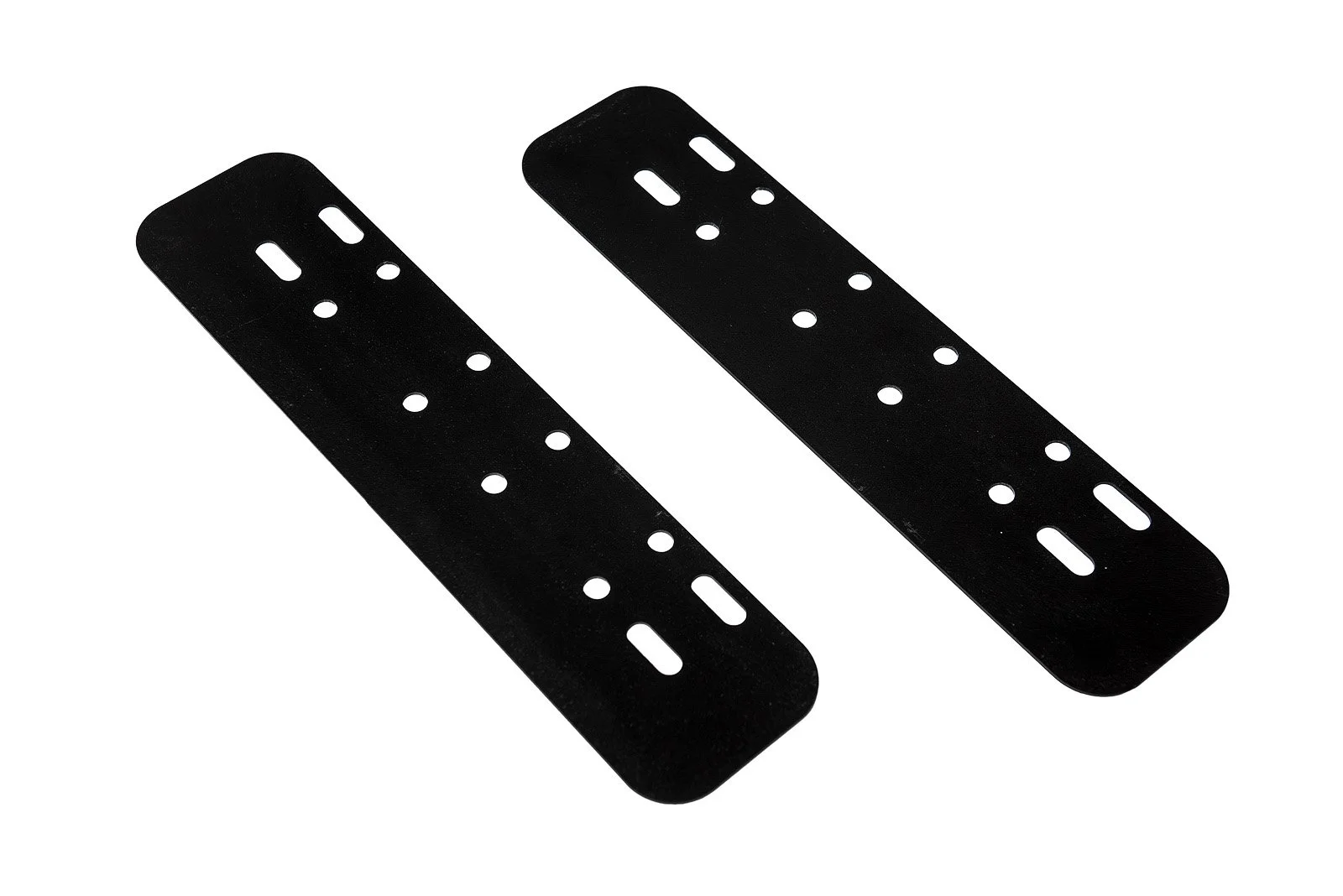

ARM PAD HD STRENGTHENING PLATE

These strengthening plates fit the 314G (3.5 x 14″ / 75 x 405mm) and 316G (3.5 x 16″ / 75 x 405mm) Arm Pads.

If you have clients who require a little extra strength in their arm pads these are the perfect solution. They are particularly useful when you have standing transfer clients who exert extra pressure particularly on the ends of the pads.

PART# 314GBO – 3.5X14

PART# 316GBO – 3.5X16

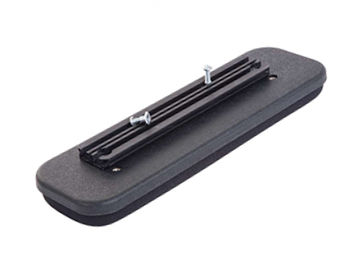

ARM PADS - TMS Series

  •  All the unique comfort of the G Series pads with the addition of track style mounting.  This offers multiple positioning options with total ease of adjustment and reduces the need for a drill!

    • The bottom has the LaBac™ style 4 tracks, 2 sliding T-nut universal mounting system.

    • Fits everywhere and thanks to the multi-track system can even be used at an angle.

PART# 210TMS – 2” x 10”

PART# 310TMS – 3.5” x 10”

PART# 212TMS – 2” x 12”

PART# 312TMS – 3.5” x 12”

PART# 214TMS – 2” x 14”

PART# 314TMS – 3.5” x 14”

PART# 316TMS – 3.5” x 16”

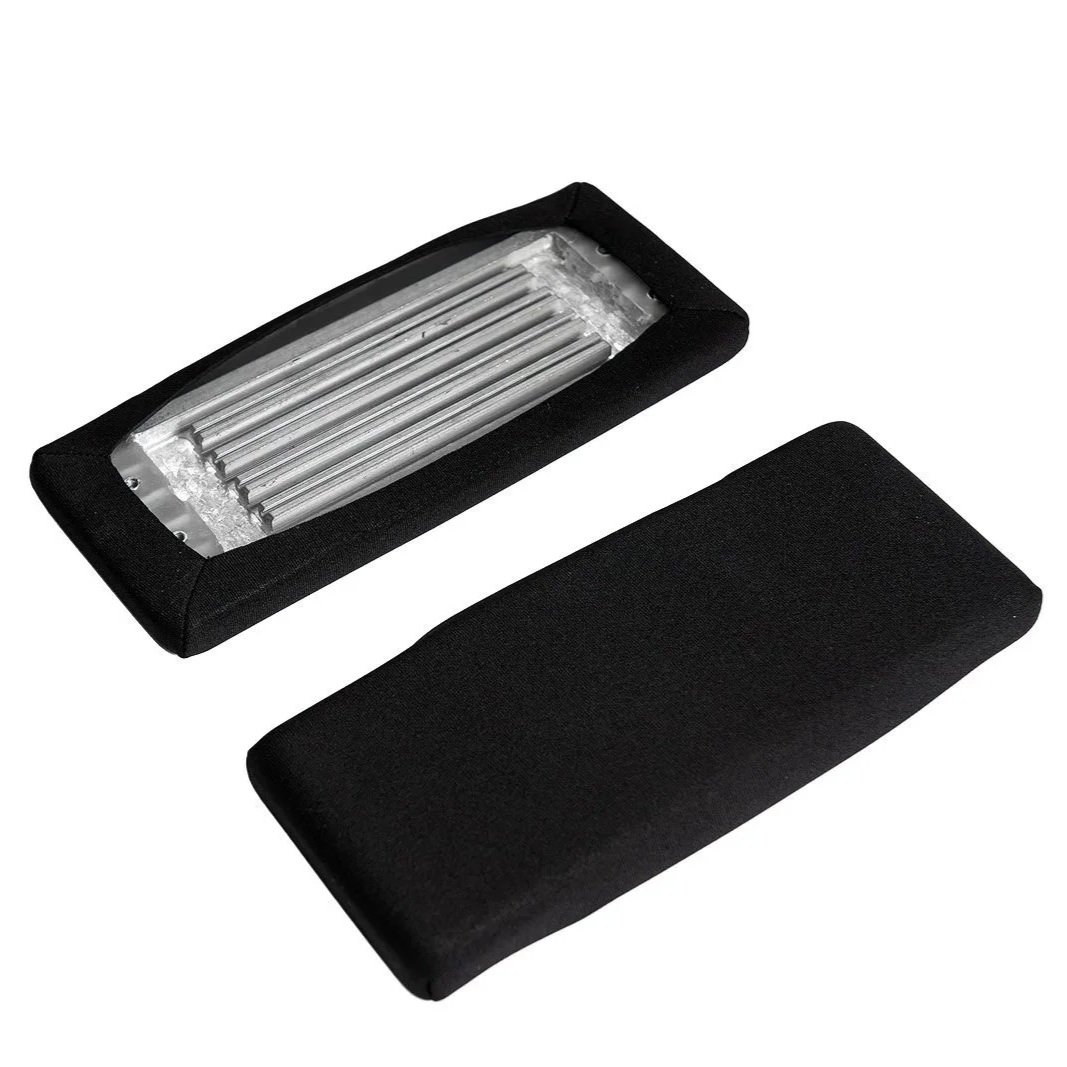

ARM PAD - GT Series

  • Modular Gel Arm pad with tracking and removable cover.

  • Arm pad is a GEL version of the center section of the LaBac Modular Trough system.

  • Fits all the LaBac modular trough pieces.

  • Easy to fit as a hip guide leg protector trough center or any other place due to its versatile hardware.

  • Comes with sliding t-nuts and can be used at angles thanks to multi-track configuration.

PART# 408GT – 4” x 8”

PART# 410GT – 4” x 10”

PART# 412GT – 4” x 12”

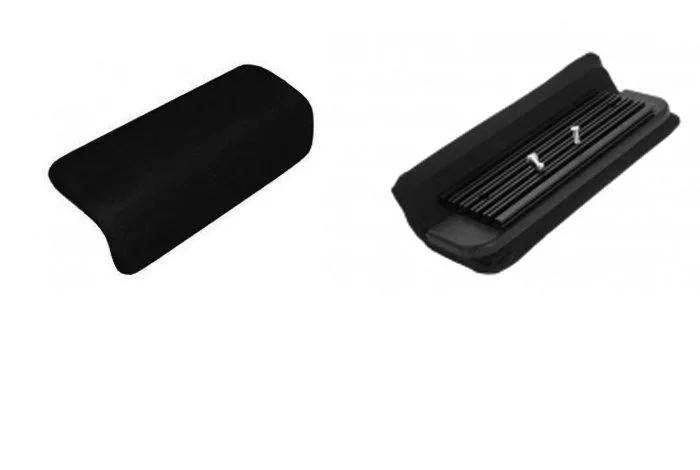

WATERFALL ARM PADS - GWT Series

The GWT Series Waterfall Arm Pad is a heavy-duty pad that is perfect for power chairs, or when the user requires extra support.

  • Provides extra protection for highly sensitive skin

  • 4” wide Gel pad with 3” waterfall drop, protective GEL pad with Neoprene / Nylon cover (black).

  • The bottom has a universal mounting system, 5 tracks with 2 sliding T-nut.

  • Fits everywhere and thanks to the multi-track system can even be used at an angle.

PART# 410GWT – 4” x 10”

PART# 412GWT – 4” x 12”

PART# 414GWT – 4” x 14”

PART# 416GWT – 4” x 16”

UNIVERSAL ELBOW STOP BRACKET W 3X4 FLAT GEL PAD

45 Degree bracket designed to fit the 3.5” (75mm) wide G Series Arm Pads, GT Series Arm pads, 4” wide Labac Arm Pads and the GWT Series Arm Pads.

  • Includes 3″ x 4″ AEP flat GEL elbow stop pad.

PART# UESF – BRACKET & 3X4 OVAL GEL PAD

PART# AEP1 – 3X4″ OVAL GEL PAD W T NUTS

PART# AESPC – 3×4″ OVAL GEL PAD COVER

UNIVERSAL ELBOW STOP BRACKET W 4X4 DIMENSIONAL GEL PAD

45 Degree bracket designed to fit the 3.5” (75mm) wide G Series Arm Pads, GT Series Arm pads, 4” wide Labac Arm Pads and the GWT Series Arm Pads.

  • Includes 4″ x 4”-Dimensional GEL elbow stop pad.

PART# UESC – BRACKET AND 4X4 GEL DIMENSIONAL GEL PAD

STA-RITE™ SWINGAWAY ELBOW STOP

Sta-Rite™ elbow stop with 3”x4”gel pad, swingaway, removable and mounts to 7/8″ or 1” round tube back canes.

  • Quadra-pivot™ positioning allows pad position adjustment in 3 planes and 6 directions. Serrated round tube accessory clamps have set screws, the pad will Stay Right where you want it.

  • Easy to use swing away hardware makes transfers easy by allowing the arm rest to be easily flipped back.

  • Now available with longer stem options to get an even more perfect fit.

SRESC78
STA-RITE ADJ. SWING AWAY ELBOW STOP W 3X4″ GEL PAD-7/8 TUBE

SRES1C78
STA-RITE ADJ. SWINGAWAY ELBOW STOP W 3X4″ GEL PAD-7/8 TUBE, 3 1/4 STEM

SRES2C78
STA-RITE ADJ. SWINGAWAY ELBOW STOP W 3X4″ GEL PAD-7/8 TUBE, 4 1/4 STEM

SRES3C78
STA-RITE ADJ. SWINGAWAY ELBOW STOP W 3X4″ GEL PAD-7/8 TUBE, 5 1/4 STEM

SRESD1
STA-RITE ADJ. SWING AWAY ELBOW STOP W 3X4″ GEL PAD-1″ TUBE

SRES1D1
STA-RITE ADJ. SWINGAWAY ELBOW STOP W 3X4″ GEL PAD-1″ TUBE,3 1/4 STEM

SRES2D1
STA-RITE ADJ. SWINGAWAY ELBOW STOP W 3X4″ GEL PAD-1″ TUBE,4 1/4 STEM

SRES3D1
STA-RITE ADJ. SWINGAWAY ELBOW STOP W 3X4″ GEL PAD-1″ TUBE,5 1/4 STEM

STA-RITE™ FIXED ELBOW STOP WITH 3″ X 4″ GEL PAD

Sturdy fixed position elbow stop to mount on to back canes. Includes Sta-Rite™ serrated accessory clamp with set screw and 3″ x 4″ AEP gel pad.

PART# EBLSC78 FITS 7/8” TUBING

PART# EBLSD1 FITS 1” TUBING

GEL TUBULAR ARM COVER

  • PAIR of 12″ long covers with 1/4″ GEL along top is designed for tubular arms. Covers zipper on over existing foam cover for easy installation and for proper positioning on arm.

PART# TAC
