Arm Support - Troughs

Three different bicycle saddles in a row, varying in shape and design, all black in color.

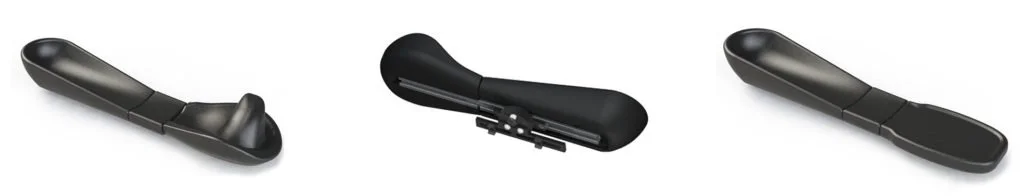

Modular Trough Arm Support System

  • The modular trough arm support system consists of six polyurethane parts and one swivel arm, which can be individually combined with each other, offering the best comfort for wheelchair users.

  • Polyurethane foam parts are recognized for durability and low weight and suited for use in damp and hygienic environments.

  • The 360 ° swivel, turn able hardware provides extra flexibility in positioning an arm, allowing the clinicians to mirror the arm’s position

  • The 360 ° swivel arm and the special shape of the polyurethane parts, makes our arm support system particularly suitable for wheelchair users with half-sided paralysis.

TROUGH ARM SUPPORT

Trough Arm Support with slot nuts for optimal forearm stabilisation and positioning.

  • Approximate length is 11” long.

PART# RPU1S

TROUGH EXTENSION PIECE

  • Extension piece with connecting element and 4 grub screws.

  • Attaches to Trough Arm Support to extend length of trough to 14” long.

PART# RPU4S

HAND REST FLAT

  • Flat hand rest includes connecting element with 4 grub screws to connect to Trough Arm Support.

  • Approximately 4.5” wide and 7” long.

PART# RPU2

PALM EXTENSOR HAND PAD

  • Universal hand rest with anatomical shape, which is suitable for the left and right arm.

  • Positions hand and fingers to help reduce contractures in wrist and fingers.

  • Palmar hand pad includes connecting element with 4 grub screws to connect to Trough Arm Support.

  • Approximately 9.75” wide and 6.5” long.

PART# RPUH5

HAND REST WITH ANATOMICAL HANDLE

  • Hand rest with anatomic handle, includes connecting element with 4 grub screws.

  • Approximately 8.5” long.

PART# RPU3LS – Left Side

PART# RPU3RS – Right Side

360° SWIVEL ATTACHMENT

  • 360° turn able swivel hardware, mountable on the left or right side, includes 2 slot nuts, round tube adapters for attachment to the Trough Arm Support, outreach 17.5 mm, hole distance 141 mm.

PART# RUBEFP

ADDITIONAL SUPPORT PLATE

  • Additional support plate, providing longer outreach of 37.5 mm, hole distance 141 mm

PART# RUBEFP2

MODULAR TROUGH ARMREST SYSTEM-PACKAGES

Popular combinations with one part number for easy ordering:

Part Number Description
RTP1101 Arm Trough 11" with Flat Hand Rest, O/A Length 18"
RTP1103 Arm Trough 11" with Hand Rest with Anatomic Handle, Left, O/A Length 19.5"
RTP1105 Arm Trough 11" with Hand Rest with Anatomic Handle, Right, O/A Length 19.5"
RTP1119 Arm Trough 11" with Palm Extensor Hand Rest, O/A Length 19"
RTP1402 Arm Trough 14" with Flat Hand Rest, O/A Length 21"
RTP1404 Arm Trough 14" with Hand Rest with Anatomic Handle, Left, O/A Length 22"
RTP1406 Arm Trough 14" with Hand Rest with Anatomic Handle, Right, O/A Length 22"
RTP1420 Arm Trough 14" with Palm Extensor Hand Rest, O/A Length 22"
RTP1107 Arm Trough 11" with Turnable/Swivel Hardware, Left, O/A Length 11"
RTP1109 Arm Trough 11" with Turnable/Swivel Hardware, Right, O/A Length 11"
RTP1408 Arm Trough 14" with Turnable/Swivel Hardware, Left, O/A Length 14"
RTP1410 Arm Trough 14" with Turnable/Swivel Hardware, Right, O/A Length 14"
RTP1111 Arm Trough 11" with Turnable/Swivel Hardware & Flat Hand Rest, Left, O/A Length 18"
RTP1113 Arm Trough 11" with Turnable/Swivel Hardware & Flat Hand Rest, Right, O/A Length 18"
RTP1115 Arm Trough 11" with Turnable/Swivel Hardware & Hand Rest with Anatomic Handle, Left, O/A Length 19.5"
RTP1117 Arm Trough 11" with Turnable/Swivel Hardware & Hand Rest with Anatomic Handle, Right, O/A Length 19.5"
RTP1121 Arm Trough 11" with Turnable/Swivel Hardware & Palm Extensor Hand Rest, Left, O/A Length 19.5"
RTP1123 Arm Trough 11" with Turnable/Swivel Hardware & Palm Extensor Hand Rest, Right, O/A Length 19.5"
RTP1412 Arm Trough 14" with Turnable/Swivel Hardware & Flat Hand Rest, Left, O/A Length 21"
RTP1414 Arm Trough 14" with Turnable/Swivel Hardware & Flat Hand Rest, Right, O/A Length 21"
RTP1416 Arm Trough 14" with Turnable/Swivel Hardware & Hand Rest with Anatomic Handle, Left, O/A Length 22"
RTP1418 Arm Trough 14" with Turnable/Swivel Hardware & Hand Rest with Anatomic Handle, Right, O/A Length 22"
RTP1422 Arm Trough 14" with Turnable/Swivel Hardware & Palm Extensor Hand Rest, Left, O/A Length 23"
RTP1424 Arm Trough 14" with Turnable/Swivel Hardware & Palm Extensor Hand Rest, Right, O/A Length 23"
